| Laptop Form Factor | Gaming Laptops |
|---|---|
| Laptop Graphics | Nvidia Graphics |
| Laptop Memory | 32 GB DDR5 |
| Laptop Operating Systems | Windows 11 Home, Windows 11 PRO |
| Laptop Screen Size | 40.60 cm (16 inch) |
| Laptop Processor | Intel® Core™ Ultra Processors |
| Laptop Weight | Mora then 2KG |
| Laptop Touch Screen | Touch Screen |
| Laptop Storage Size | 2 TB NVME SSD |
| Laptop Processor Brand | Intel |
| Laptop Screen Resolution | FHD |
Latios Archer Gaming Laptop (LTG540Z)
- Home
- Products
- Commercial Product - Laptops & Tablets
- Latios Archer Gaming Laptop (LTG540Z)

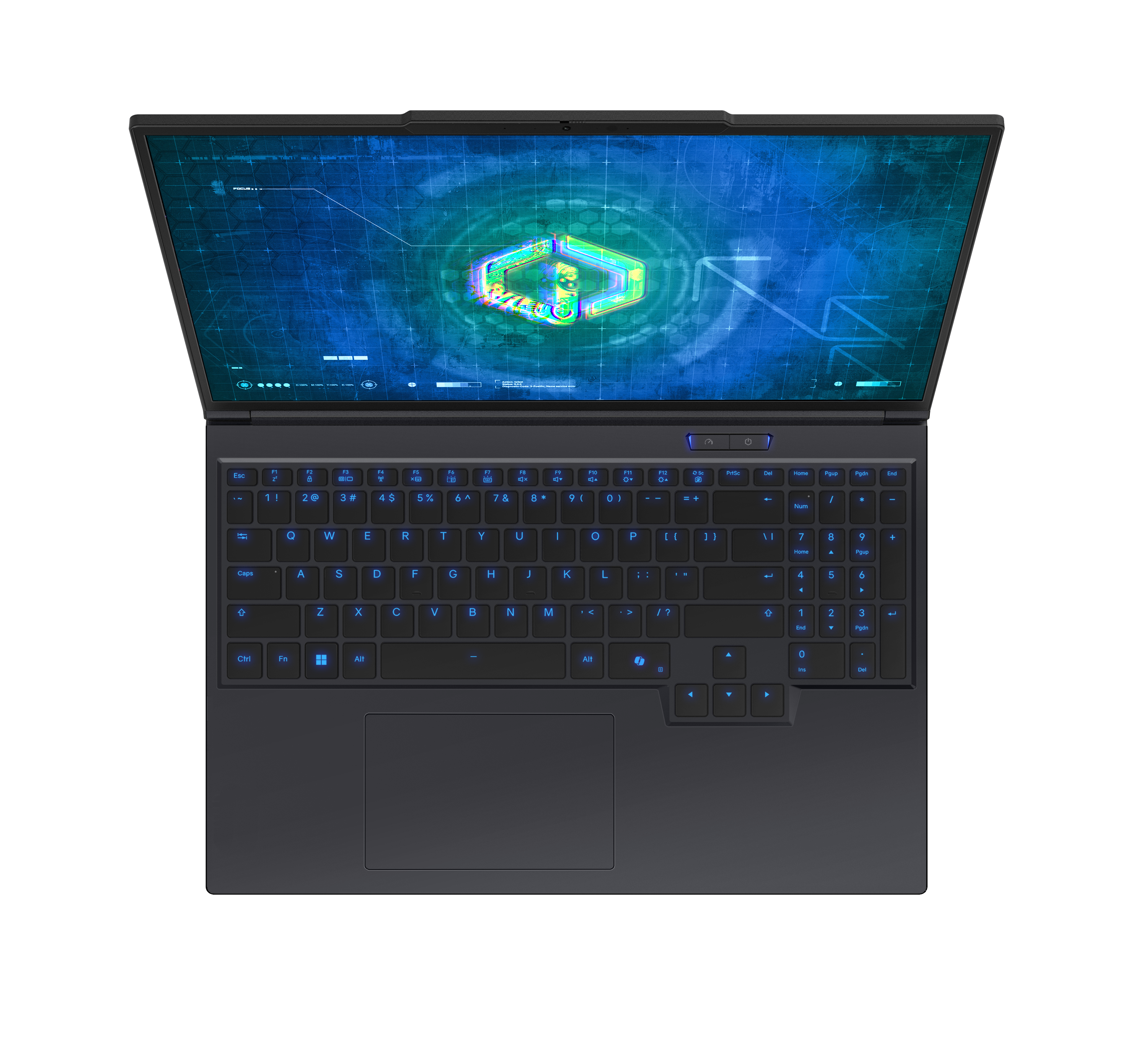

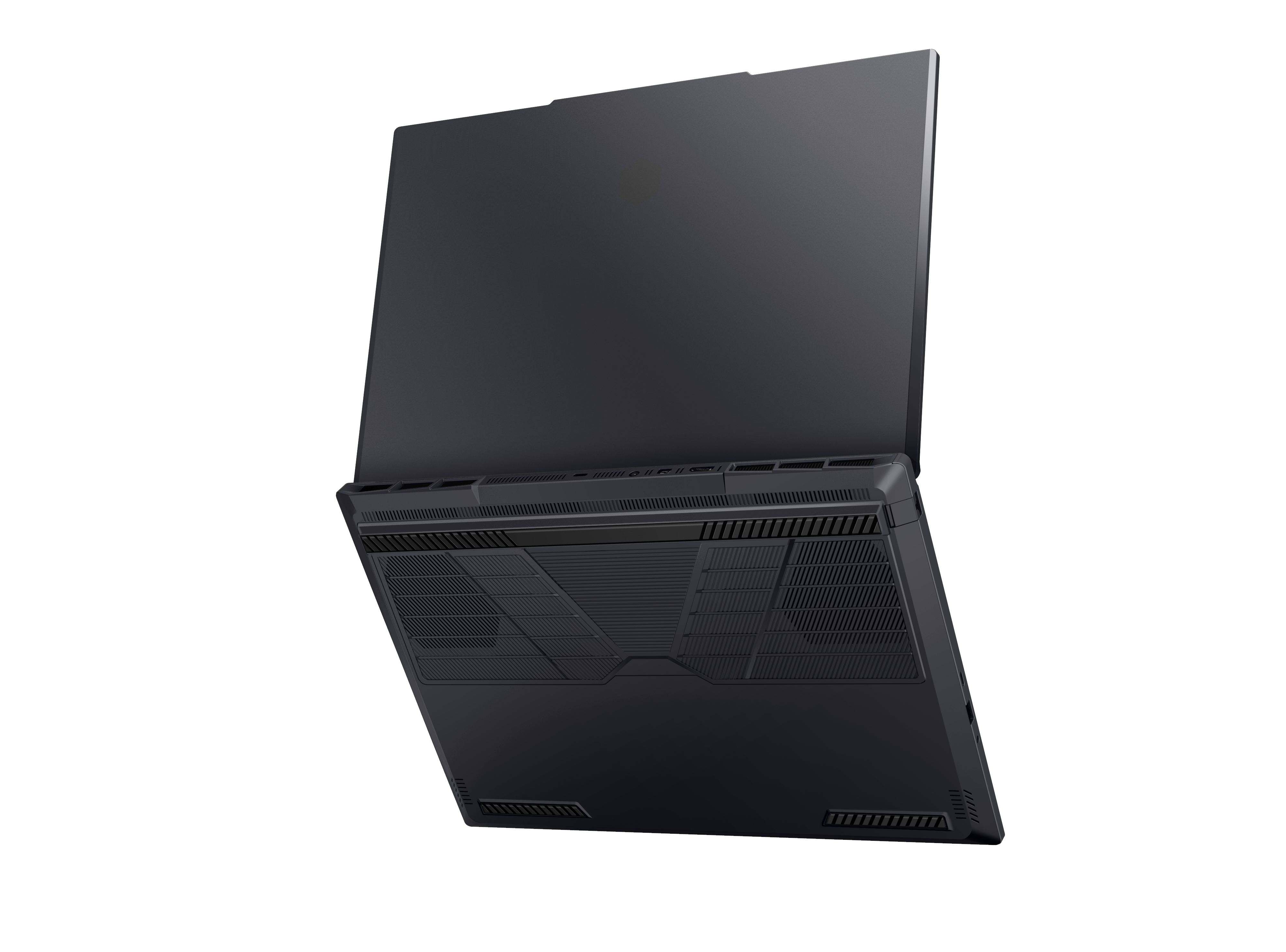

Latios Archer Gaming Laptop (LTG540Z)
- Up to Intel® Core™ Ultra 9 200HX series processor
- Windows 11 Home (Latios recommends Windows 11 Pro for business.)
- 16“ 16:10 2560X1600 300Hz DCI-P3 100%(Mini LED) 500nits
- Intel® HM870
- NVIDIA® GeForce RTX™ 5050 Laptop GPU 8GB GDDR7 powers advanced AI with 440 AI TOPS 2662MHzx Up to Boost Clock 115W Maximum Graphics Power with Dynamic Boost.
Tech Specification
| Processer | Up to Intel® Core™ Ultra 9 200HX series processor |
| Operating System | Windows 11 Home (Latios recommends Windows 11 Pro for business.) Windows 11 Pro |
| Display | 16“ 16:10 2560X1600 300Hz DCI-P3 100%(Mini LED) 500nits |
| Chipset | Intel® HM870 |
| Graphics (Integrated) | Intel® UHD Graphics (Integrated) |
| Graphics Card Support | NVIDIA® GeForce RTX™ 5050 Laptop GPU 8GB GDDR7 powers advanced AI with 440 AI TOPS 2662MHzx Up to Boost Clock 115W Maximum Graphics Power with Dynamic Boost. NVIDIA® GeForce RTX™ 5060 Laptop GPU 8GB GDDR7 powers advanced AI with 572 AI TOPS 2497MHzx Up to Boost Clock 115W Maximum Graphics Power with Dynamic Boost. NVIDIA® GeForce RTX™ 5070 Laptop GPU 8GB GDDR7 powers advanced AI with 798 AI TOPS 2347MHzx Up to Boost Clock 115W Maximum Graphics Power with Dynamic Boost. NVIDIA® GeForce RTX™ 5070 Ti Laptop GPU 12GB GDDR7 powers advanced AI with 992 AI TOPS 2220MHzx Up to Boost Clock 140W Maximum Graphics Power with Dynamic Boost. NVIDIA® GeForce RTX™ 5080 Laptop GPU 16GB GDDR7 powers advanced AI with 1334 AI TOPS 2287MHzx Up to Boost Clock 175W Maximum Graphics Power with Dynamic Boost. Max. 270W CPU-GPU Power with OverBoost Technology. |
| CPU and GPU Combined Power | Max. 270W CPU-GPU Power with Latios OverBoost Ultra Technology. *Full Power CPU & GPU |
| Memory | Up to DDR5-6400 Max 96GB 2 Slots *The actual frequency will vary by memory combination and CPU capability. |
| Storage Capability | 2x M.2 SSD slot (NVMe PCIe Gen5) |
| Security | Firmware Trusted Platform Module(DTPM) 2.0 Kensington Lock Secured-core PCs Webcam Shutter |
| Webcam | IR FHD type (30fps@1080p) with HDR 3D Noise Reduction+ (3DNR+) |
| Keyboard | Single zone RGB Membrane Keyboard with Copilot Key Optional: Mechanical Per-Key RGB Gaming Keyboard with Copilot Key |
| Communication | 2.5GbE Lan 802.11 be Wi-Fi 7 + Bluetooth v5.4 |
| Audio | 2x 2W Speaker Array Microphone |
| Audio Jack | 1x Mic-in/Headphone-out Combo Jack |
| I/O Ports | Rear side: USB-C TBT4 x1/ HDMI 2.1 x1/ Mini DP 2.1a x1/ DC-in x1 Right side: USB-A 3.2 x2/ full size card reader x1 Left side: USB-A 3.2 x1/ USB-C 3.2 x1/ RJ45 2.5G LAN x1/ 3.5mm combo jack x1/ Nano Kensington lock x1 |
| Battery | 4-Cell 99.9 Battery (Whr) |
| Adapter | 330W adapter |
| Dimension (WxDxH) | 356.68 x 254.48 x 21 mm |
| Weight (w/ Battery) | 2.1kg |
| Certification | BIS,ROHS |
